BlueProton ARGtek DJI Phantom 3 SE WiFi Signal Range Extender 6 Antennas (Dual Band)

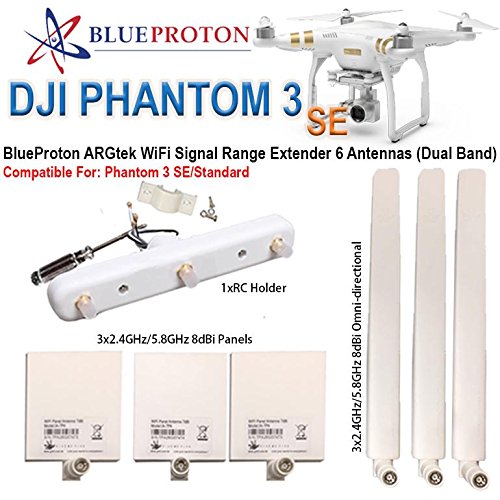

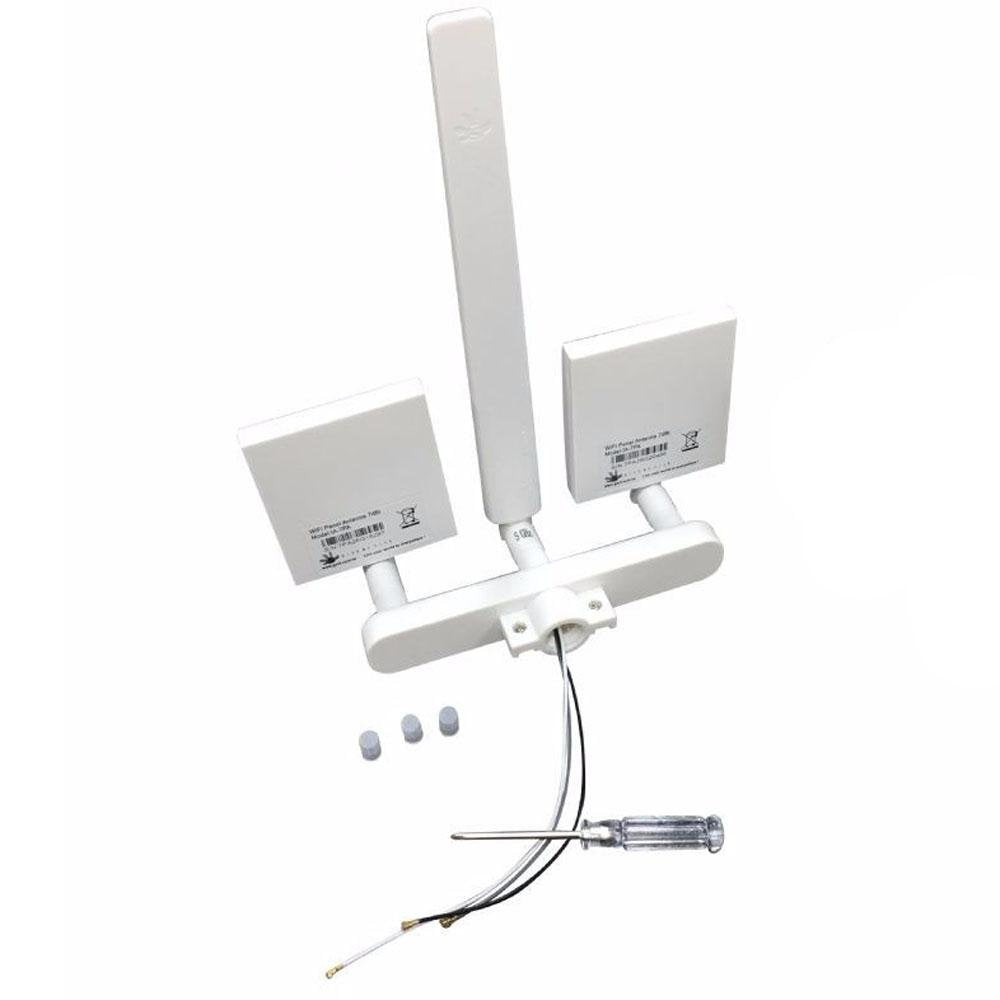

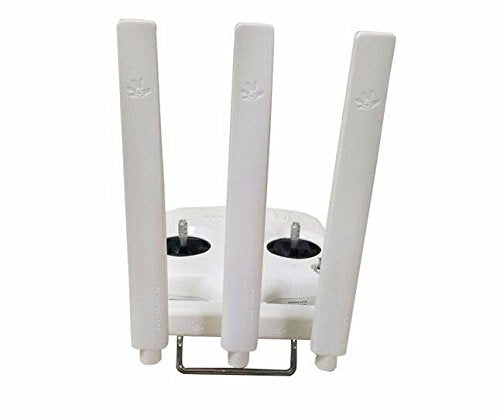

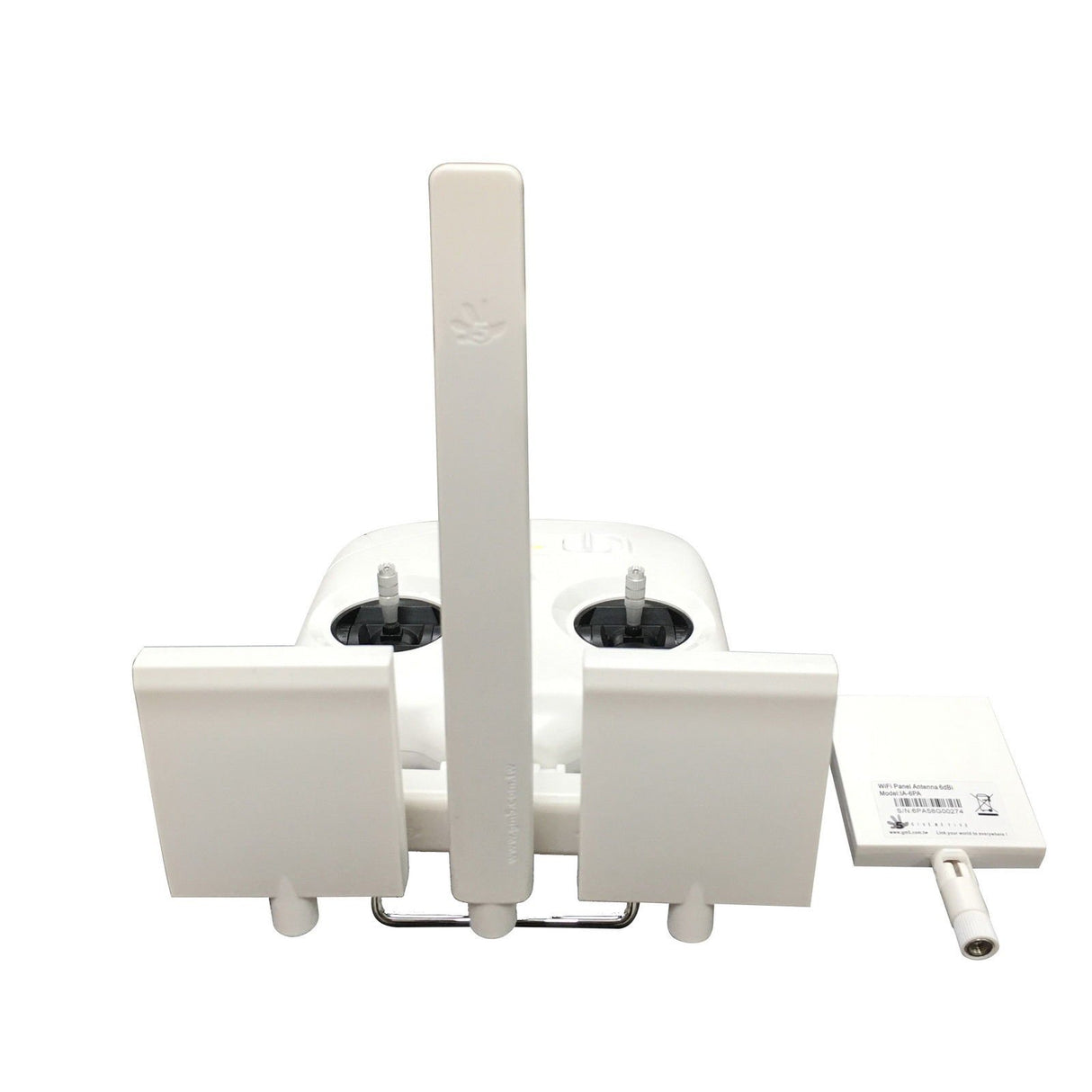

Â Six antenna kit: 3 customized high-gain 2.4GHz/5.8GHz 8dBi flat panel antenna, 3 high-gain 2.4GHz/5.8GHz Omni-directional antenna with stand.
Â Lightweight, durable, practical and convenient to use in compact design. Full range coverage, strong and stable signal improves both remote control and WiFi video connection performance.
Â Our antenna kits will extend the range up to 4 times the DJI rating and help with the signal penetration around objects.. Actual range extension will depend on your exact deployment environment, and is not guaranteed.Â
Â *DJI Phantom 3 SE Remote Controller Operating FrequencyÂ 2.400 - 2.483 GHzï¼›5.725 - 5.825 GHz.Â FCC Compliant: 2.5 mi (4 km),Â CE Compliant: 0.3 mi (500m),Â (Unobstructed, free of interference).
Â This item is for the DJI Phantom 3 SE (Compatible with Phantom 3 Standard)
- ARGtek DJI Phantom 3 Standard/SE WiFi Signal Range Extender Antenna Kit with 6 antennas Kit
- 6 antenna kit: 3 customized high-gain 2.4GHz/5.8GHz 8dBi panels, 3 high gain 2.4GHz/5.8GHz 8dBi Omni-Directional with stand.
- Lightweight, durable, practical and convenient to use in compact design.
- Full range coverage, strong and stable signal improves both remote control and Wifi video connection performance.
- Our antenna kits will extend the range up to 4 times the DJI rating.
Please note:Â The instructions videos below were user created. However the steps can be seen clearly in the video.
For starters, anyone saying this made their signal worse...didn't install it correctly. There are 3 wires that need to be popped off their connectors.
Â Please use a small screwdriver pull up on the wire and they pop off (don't be afraid to use a little force, if they are on their properly it'll take a tug).
Â Please pull up on the antenna while chipping away at the glue with screwdriver and they come off. Â The other wire is connected to the original antenna which you remove.
Â Now here comes the part where you need to focus...snapping these 3 new wires onto their respective bases. You really have to snap them on or they wonâ€™t work.
Â (People having range issues after installing this modified probably didn't push down hard enough so these new connectors snapped tightly into place).Â
Â Once you have them tightly in place...pull up on them...if they come right off they are not on properly!! They should stay on their solidly when you pull up on them. Once you are sure they are on their tightly put a dot of hot glue on the connection to make sure they stay put. After that reassemble the controller and enjoy the range boost this setup will give you. It works, as long as you do it right.
