- Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1. 5GHz---4GB LPDDR4-2400 SDRAM
- 2. 4 GHz and 5. 0 GHz IEEE 802. 11B/g/n/ac Wireless LAN, Bluetooth 5. 0, double-true Gigabit Ethernet
- 2 USB 3. 0 ports, 2 x USB 2. 0 Ports---2 micro HDMI ports supporting up to 4Kp60 video resolution
- 2-lane MIPI DSI/CSI ports for camera and display--4-pole stereo audio and composite video port--Micro SD card slot for loading operating system and data storage
- Requires 5. 1V, 3a power via USB Type C or gpio-poep (power over Ethernet) enabled (requires PoE hat-not included)

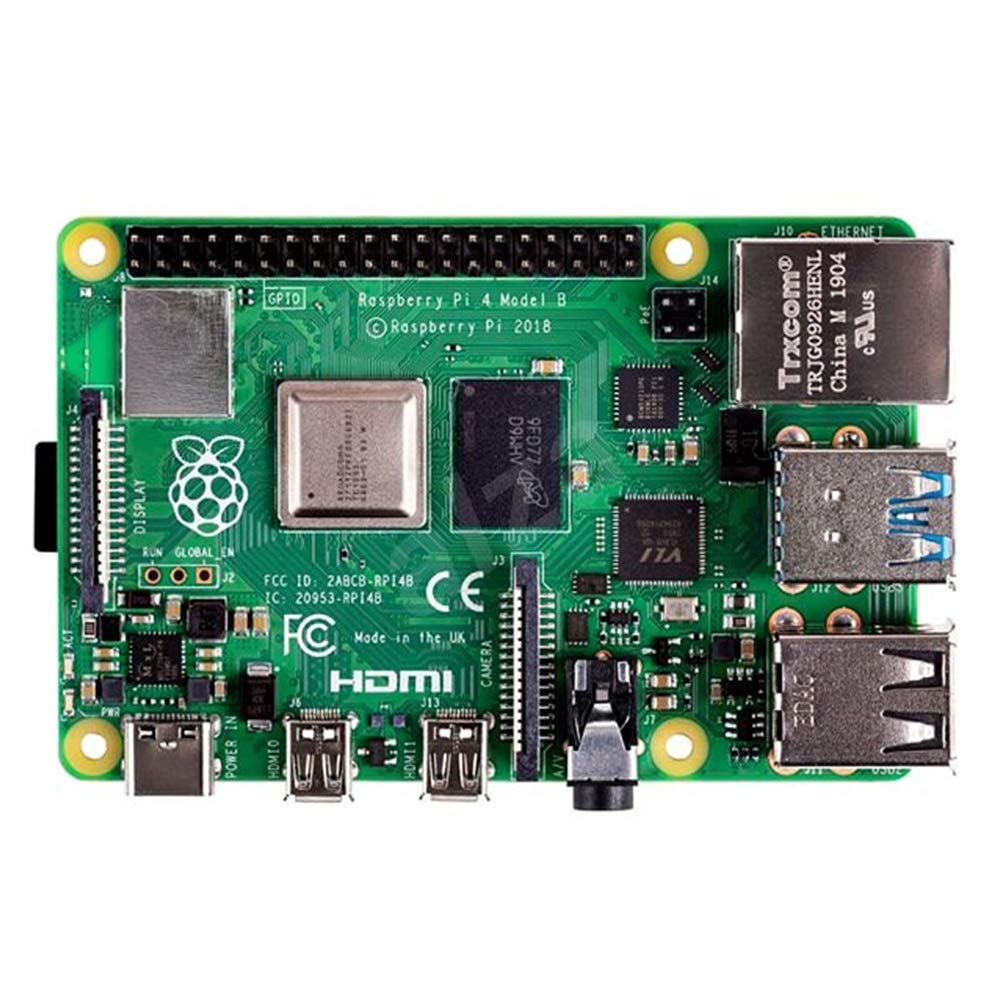

Capacity:4GB Raspberry Pi 4 Model B is the latest product in the popular
Raspberry Pi range of computers. It offers ground-breaking increases in
processor speed, multimedia performance, memory, and connectivity compared to
the prior-generation Raspberry Pi 3 Model B+, while retaining backwards
compatibility and similar power consumption. For the end user, Raspberry Pi 4
Model B provides desktop performance comparable to entry-level x86 PC systems.
This product’s key features include a high-performance 64-bit quad-core
processor, dual-display support at resolutions up to 4K via a pair of micro-
HDMI ports, hardware video decode at up to 4Kp60, 4GB of RAM, dual-band 2.
4/5. 0 GHz wireless LAN, Bluetooth 5. 0, Gigabit Ethernet, USB 3. 0, and PoE
capability (via a separate PoE HAT add-on). The dual-band wireless LAN and
Bluetooth have modular compliance certification, allowing the board to be
designed into end products with significantly reduced compliance testing,
improving both cost and time to market. Operating temperature: 0 – 50 degrees
C ambient.
