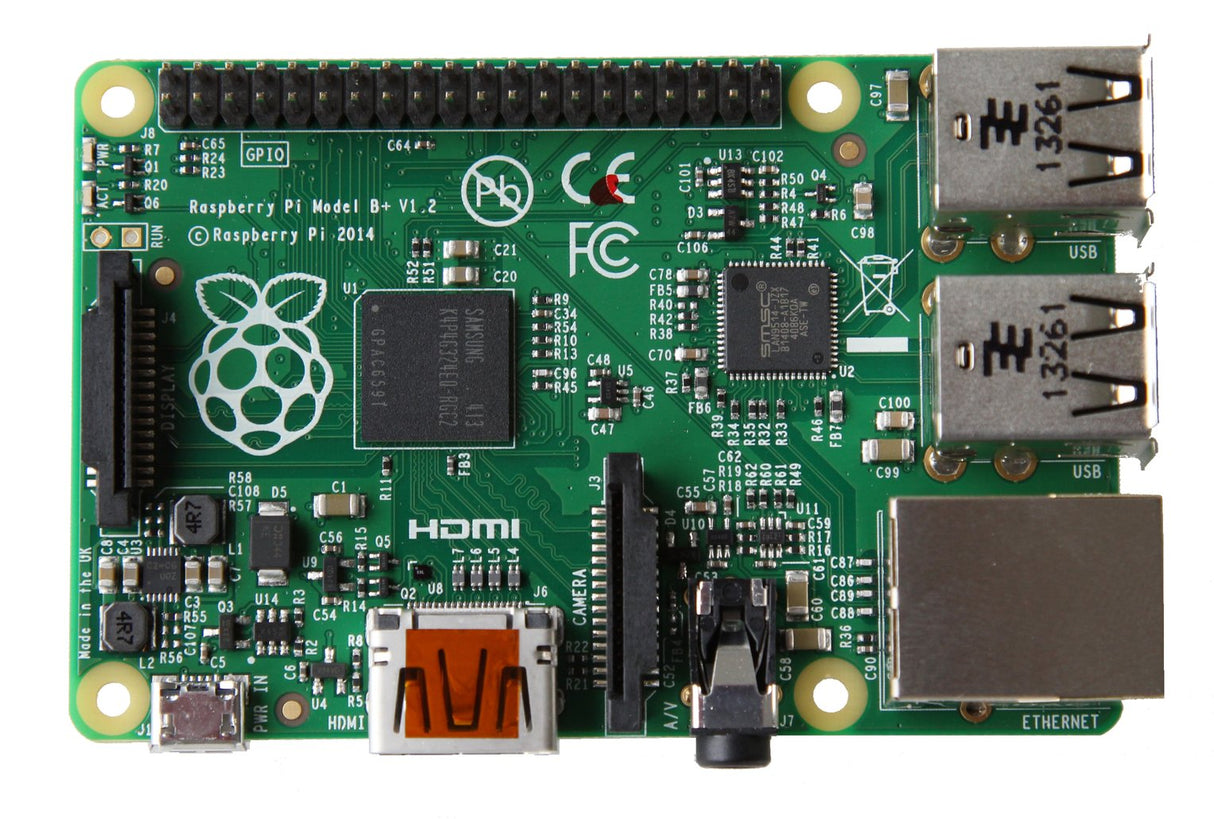

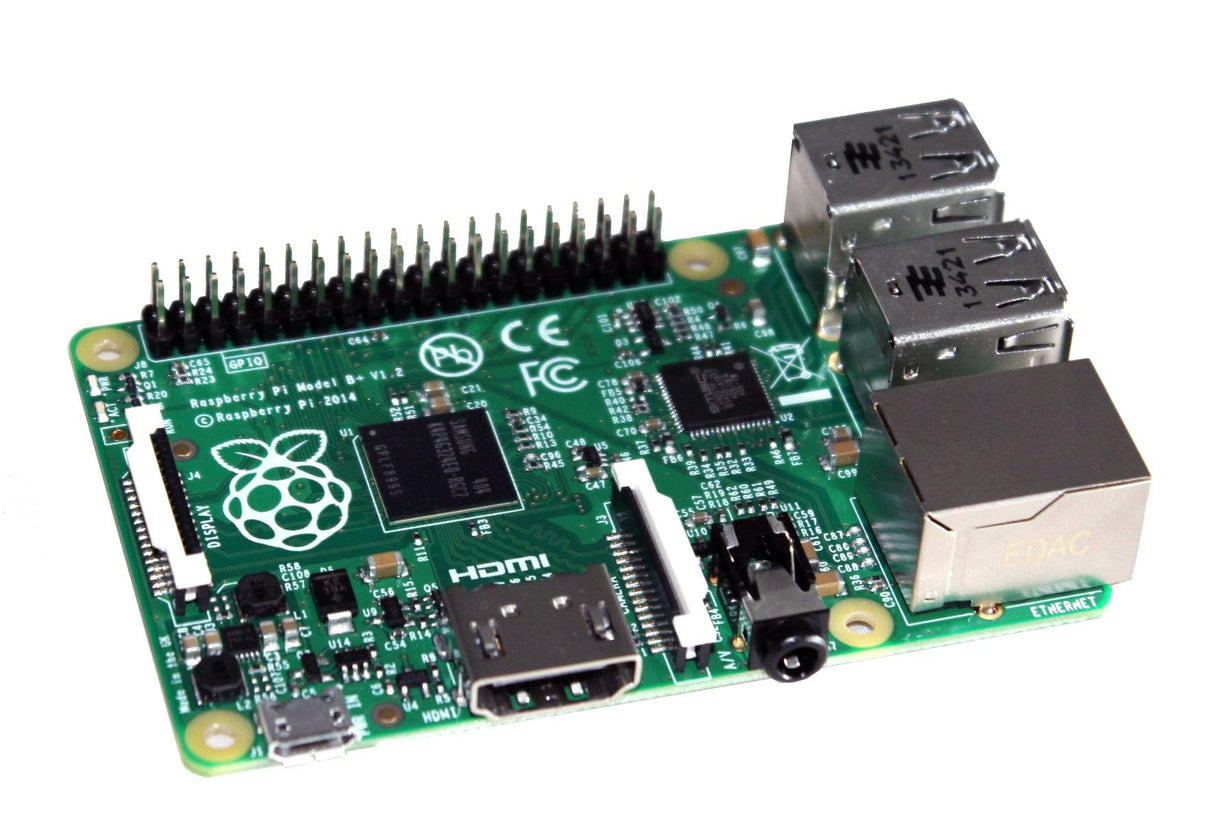

Raspberry Pi 1 Model B+ (B PLUS) 512MB Computer Board

• 700MHz Broadcom BCM2835 CPU / 512 MB SDRAM @ 400MHz / 10/100 Ethernet RJ45 on-board network
• Full size HDMI / 4 USB ports / Micro SD slot
• More energy efficiency (less power required) / Improved power management: manage more devices from your Pi
• GPIO header expanded (40 pins vs. 26)
• New 4-pole connector replaces the existing analogue and composite video port on the Model B

As seen on the Manufacturer's website - MODEL B is the original Raspberry Pi,

MODEL B+ is the higher-spec variant of the Raspberry Pi. It replaced the

original Model B in July 2014. Compared to the Model B it has: More GPIO. The

GPIO header has grown to 40 pins, while retaining the same pinout for the

first 26 pins as the Model B. More USB. We now have 4 USB 2.0 ports, compared

to 2 on the Model B, and better hotplug and overcurrent behaviour. Micro SD.

The old friction-fit SD card socket has been replaced with a much nicer push-

push micro SD version. Lower power consumption. By replacing linear regulators

with switching ones weve reduced power consumption by between 0.5W and 1W.

Better audio. The audio circuit incorporates a dedicated low-noise power

supply. Neater form factor. Weve aligned the USB connectors with the board

edge, moved composite video onto the 3.5mm jack, and added four squarely-

placed mounting holes.
